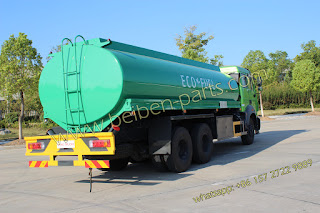

Baotou Beiben 6x4 Heavy Duty Fuel Transport Tanks Truck 18cbm to 20cbm Fuel Tanker Truck For Sales
Our company special capability:
1. with D grade pressure vessel manufacturing capability.
2. with the military producing capacity, got the military certification in 2005;
3. Our company is pointed production base for China petroleum and China Petrochemical.
4. Our company has first-class technology and first-class equipment.
5. our company has Large CNC welding machine, forging machines, underwater plasma cutting machine. Large tank forming rolling machine, anti-dust painting machine and other advanced producing equipment.our company has specialized in producing the following series of automobile.
specs of Baotou Beiben 6x4 Heavy Duty Fuel Transport Tanks Truck 18cbm to 20cbm:
Chassis Model /Manufacturer
|
ND1252B45J
with air condition
| ||
cab
|
flatting cab
| ||
Overall Dimension
|
L×W×H
|
mm
|
9465x2500x3370
|
Total Mass
|
Kg
|
25000
| |
Loading mass
|
Kg
|
11800
| |
Kerb Weight
|
Kg
|
13070
| |
front overhang/rear overhang
|
1410/2105
| ||
Engine
|
Model/Rated Power
|
WP7.270E30
| |
Displacement/ power
|
7140L/199kw
| ||
Emission Standard
|
Euro 3
| ||
Manufacturer
|
Weichai Motor Co., Ltd.
| ||
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging
| |||
driving type
|
6*4
| ||
Steering Type
|
Power Steering
| ||
Type & Size of Tyre
|
11.00-20
| ||
Tread( front/rear)
|
1940/1860
| ||
Wheel Base
|
mm
|
4500+1350
| |
Number of leaf spring of suspension
|
piece
|
26/15
| |
Max Speed
|
Km/h
|
90
| |
technical parameter of Fuel tank body
| |||
Capacity
|
20cbm
| ||
Thickness of tank body
|
5mm
| ||
With Boshan gear pump
Model: 80YHLB/60,
Flux: 60m3/h,
Working pressure:0,6Mpa,
efficiency:72%,
Suction height:7m,
Speed roration:960R/min
| |||
Equip separators (baffle) to prevent surging of liquid towards head
| |||
-Transportation: fuel/water chemical acids /oil/petrol , gasoline, diesel/asphalt/ bitume/ crude oil lubricating oil/alcohol/ethanol acid, alkaline and salt liquid
1. Function: separate compartments to load different fuel and chemical liquid. Can install reading meter.
2. Material tank body: carbon steel, stainless steel plate, plastic or Fiber Reinforced Plastics cover inside the tank body.
3. shape of tank body: square, ellipse.
4.pump: gear pump or self-suction pump.
5. Welding: tank welded by welding machines and automatic welding of Carbon dioxide.
6. Paint: painted by overall spraying machines.
7. Baffle plate are installed inside of the tank body to protect the tank body.
Optional For Oil Transport Truck :
Beiben tractor truck and semitrailer
 |  |  |  |
 |  |  |
Hot sale Beiben Trucks
 |  |  |  |
 |  |  |  |
