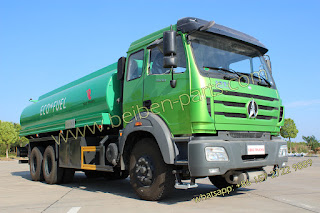

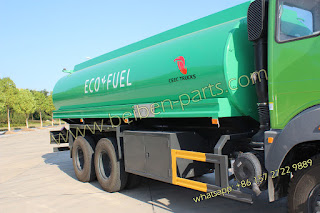

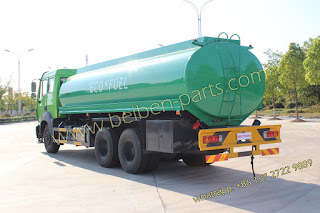

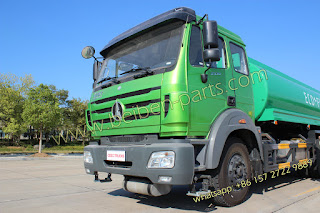

Beiben North Benz 6×4 oil tank truck is a special purpose vehicle used for the storage and transport of various oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil. Depending on different purposes and using environments, the refueling tank truck can achieve a variety of functions, such as refueling, oil transport, oil absorbing, oil pumping, oil splitting, charging and storing, etc. The oil tank of Beiben 6×4 oil tank truck adopts CNC automatic longitudinal welding process. The arc-shaped tank is processed by CNC rotary forming machine ensuring high strength and beautiful appearance. We can also provide optional refueling tank truck configurations to meet various requirements of customers.
Technical Parameters of Beiben 6×4 Oil Tank Truck
| Max. Speed (km/h) | 92 | ||
| Drive System | 6 × 4 | ||
| Dimensions (L × W × H) (mm) | Overall | 9620 × 2500 × 3400 | |
| Tanker Capacity | 20 CBM to 30 CBM | ||
| Tanker Form | single warehouse, or at buyer’s option | ||
| Tank Port Number | one or two | ||
| Others | end socket: 5 mm; barrel: 5 mm-Q235; with pump | ||
| Curb Weight (kg) | 11500 | ||
| Total Mass (kg) | 25000 | ||
| Wheel Base (mm) | 4325 plus 1350 | ||
| Wheel Track (mm) (F/R) | 1939 / 1800 | ||
| Overhang (mm) (F/R) | 1576 / 2369 | ||
| Approach / Departure Angle (°) | 18 / 17 | ||
| Engine | WD615.50 / WD615.34 ( WEICHAI, Euro II) | ||
| Horsepower | 290 / 340 HP | ||
| Gearbox | 9JS135 / RTD-11509C / 12JSD160T (FAST GEAR) | ||
| Clutch | Ф 430 Diaphragm type | ||
| Steering Engine | ZF technology | ||

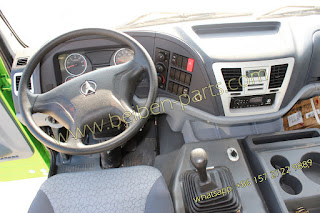

| Cab | STEYR mid-lengthened half high roof cabin with A/C and sleeper | ||
| Axle | Front | 6.5 tons | |
| Rear | 2 * 13 ton STR hub reduction axle, final ratio: 4.8 | ||
| Tire | 11.00R20 / 12.00R20 | ||
| Fuel Tank (L) | 380 | ||
