Beiben fuel tank truck capacity 22000 liters fuel oil tanker truck

Beiben 6x4 20 cbm oil/ fuel/ refuel tanker truckfor sale fuel tanker truck dimensions

Beiben 6x4 10 Wheels 20000L Oil Transport Tanker Truck Fuel Tank Truck
Vehicle model		Oil tank truck		Overall dimensions (mm)	10150x2500x3470
GVW (kg)		Appro×25000		Fact loading capacity (L)	17000
Mass in working order (kg)		Appro×9470		Max. Speed (km/h)	85
Chassis Description
Chassis Model			ND12500B51J6Z00

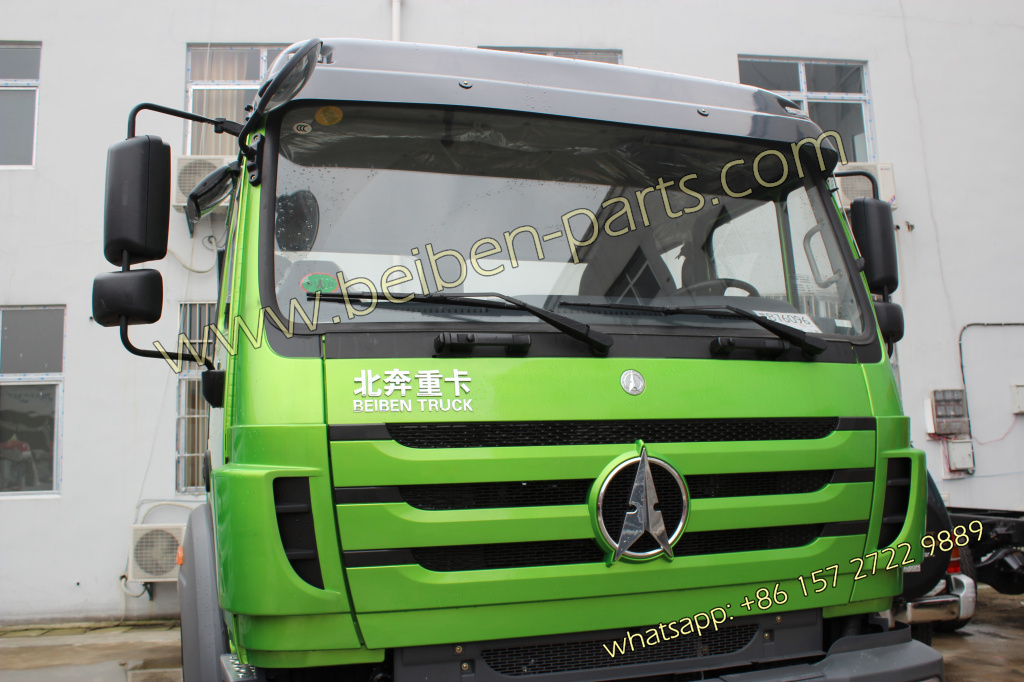

Cab			Standard cabin with Left hand drive
Color			Optional
Allowable person in cab			2/3
Wheel base (mm)			4800+1350
Front/Rear track base (mm)			6510/1860
Front/Rear overhang (mm)			1245/2845
Number of axles			3
Axle	Front axle		6700

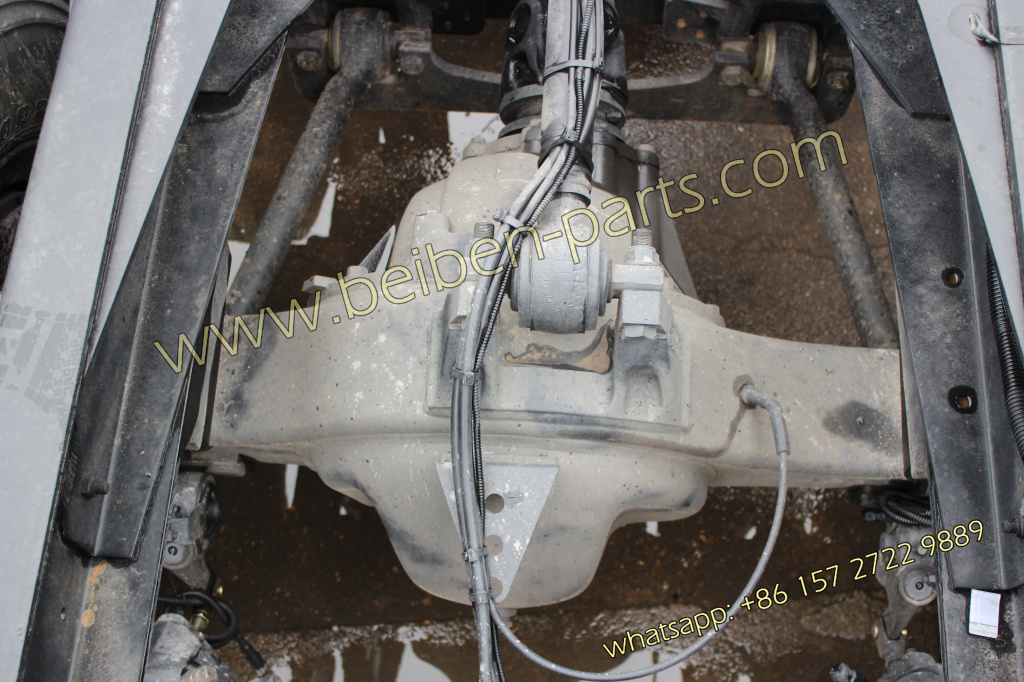

	Rear axle		18000
Traction system			6*4
Operation control system			Power steering
Braking system			Full air
Electric system			24V

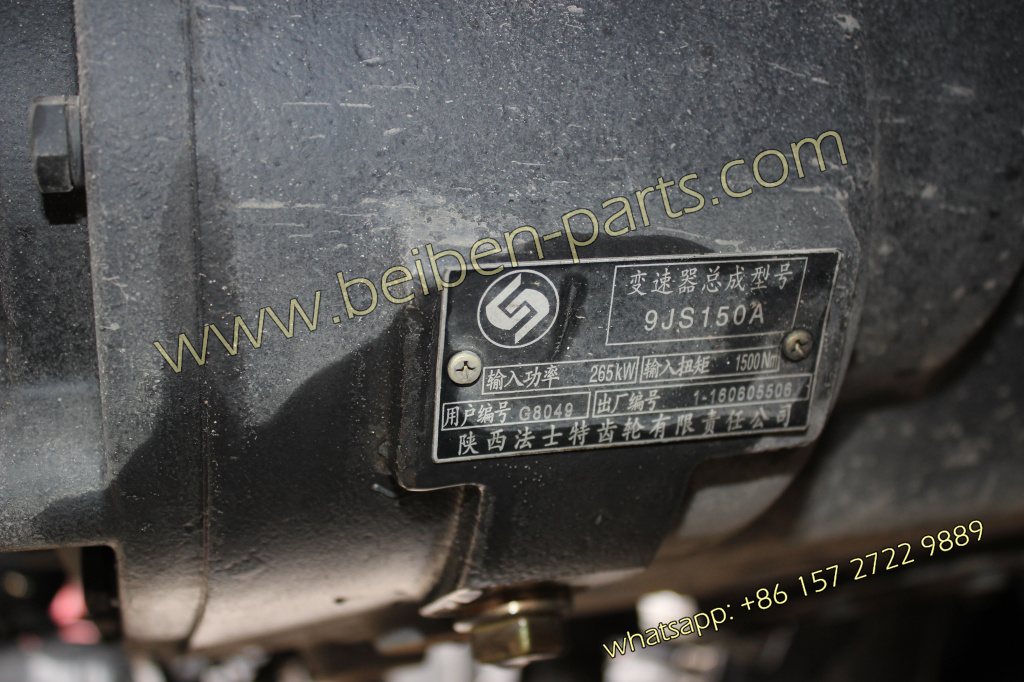

Transmission			8speed
Spring plate			8/13
Tire specification			10.00R20
Tire quantity			8+1

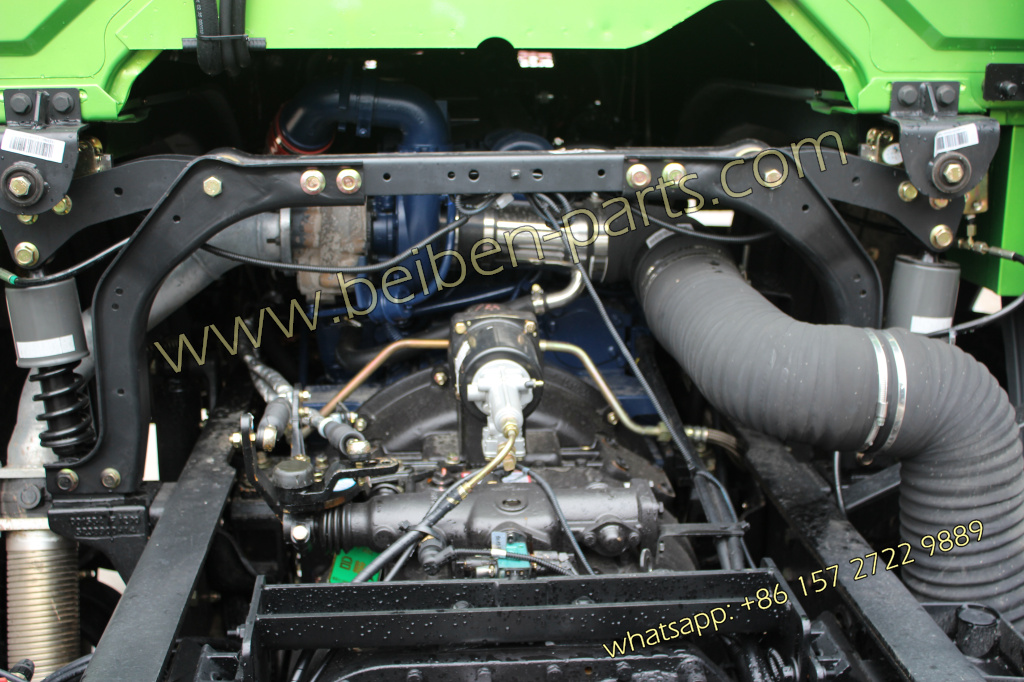

Engine Description
Engine model			WP10.300E40
Emission standard			Euro 2
Exhaust/output			9726/221
Horse power			300hp
Up-parts Description
Tank Dimension (mm)			7800×2150×1350
Standard Equipment			1.Equipped with oil pump, oil interface, oil hose suite, flow gauge. 2.Tank is made of 5mm carbon steel .The whole tank can be separated into several unattached parts . Diaphragm is welded in the middle of tank to reduce the pressure during the transportation . 3.Antirust paint is pained and container indicator is installed to show the capacity of the tank during the pump in or out . 4.In order to ensure the tank pressure and atmospheric pressure are basically the same during their working , breathing valve is installed in the covered pot CUHK .When the tank pressure is higher than the outside pressure 8KPa , the front breathing valve would open ; when the tank pressure is lower than the outside pressure 3KPa , the real breathing valve would open.
Working Condition:			1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree
