Congo
This BEIBEN 6x6 Off-road Fuel Tanker Truck (also called as Congo Beiben all wheel drive oil transportation Truck, North Beiben Military Fuel Delivery Trucks, Kenya Beiben oil tank truck refueling truck) is a special purpose vehicle used for the storage and transport of various oil derivatives, such as gasoline, diesel, crude oil, lubricating oil and coal tar oil.
Depending on different purposes and using environments, the refueling tank truck can achieve a variety of functions, such as refueling, oil transport, oil absorbing, oil pumping, oil splitting, charging and storing, etc ...
Axles from Mercedes Benz technology
heavy usage applications, all equipped with double-layer reinforced frames
Benz Quality, Ease of use, simple and reliable
Feature
All tech from Original Germany Benz. Meet the European ECER29 safety regulations and possess security of same level of European automobiles Light weight, high load capacity, strong power, high reliability, strong climbing ability and high speed. Tanker material can be: Carbon steel, Stainless steel and Aluminum alloy CEEC TRUCKS 20 years’ experience on Beiben tractor trucks exporting.Overview of Congo 6x6 Beiben Oil tank Truck
aaaaa
aaaaa
 |  | |
 |  |
Main specification
18m3 BeiBen 6*6 fuel tanker truck
| ||||
Item
|
Descriptions
|
Spesifications and Types
| ||
Vehicle
|
Brand
|
CEEC
| ||
Model
|
CEEC5256GJYZ
| |||
Overall Dimensions L*W*H
|
10465x2500x3420mm
| |||
Weights
|
GVW.
|
25,000kgs
| ||
Curb Weight
|
12,270kgs
| |||
Rated Payload
|
12,600kgs
| |||
Chassis
|
Brand
|
BeiBen
| ||
Model
|
ND1250F50J
| |||
Drive Type
|
6x6
| |||
Steering
|
RHD or LHD, power assisted steering
| |||
Engine
|
Brand
|
WeiChai
| ||
Model
|
WP10.375
| |||
Power
|
276Kw /375HP
| |||
Displacement
|
9726ml
| |||
Emmission Level
|
EURO 3
| |||
Max. Torque
|
970Nm at 1400rpm
| |||
System
|
Inline six-cylinder electronic control system Enhanced high pressure common rail particle filter
| |||
Performance
|
Max. Speed
|
80km/h
| ||
Wheel base
|
5050+1450mm
| |||
Tyre Specifications
|
12.00-20
| |||
No. of Tyre
|
13pcs (1 spare tyre included)
| |||
Axle Capacity
|
Front 8 Tons & rear 12Tons
| |||
Transmission
|
8 forward gears & 1 reverse, Manual
| |||
Brake
|
Oil brake,drum brake
| |||
Suspension
|
Leaf spring
| |||
Electics
|
24V
| |||
Cab
|
Cab Capacity
|
3 persons allowed
| ||
Cab Type
|
One and a half row
| |||
Body/Superstructure
|
Tank
|
Capacity
|
16 m³
| |
Material
|
tank shell 5mm ,dished ends 6mm,compartment boards 5mm,the material is carbon steel
| |||
Loading System
|
Top filling from manhole or pump fuel into tank from oil inlet valve.
| |||
Discharging System
|
Pump fuel out from tank or gravity discharge.
| |||
Basic
Equipments |
Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape.
| |||
Paint
|
Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements. | |||
Optional Equipments
|
Air Conditioner
| |||
Tyre type:12.00R20
| ||||
Tank material:Stainless steel
| ||||
The tank thickness :5mm carbon steel
| ||||
Bottom loading
| ||||
Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank
| ||||
Beiben 6x6 Fuel Tank truck chassis review
aaaaaaaaaa
aaaaa
aaaaaaaaaa
aaaaaaaaaa
aaaa
aaaaaaaaaaa
aaaaaaaaaa
aaaaaaaaaa

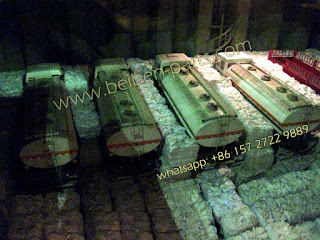

5units Beiben Off-road 6x6 Fuel Bowser Truck from Shanghia to Congo
aaaaa
aaaaaaaaaa
